3-Row Bird Wire Barrier for Gutters
Bird Wire Barriers for Gutters (Custom Diameter and Length of the Carrier Belt)
0,00 €
in business
guaranteed
in EU

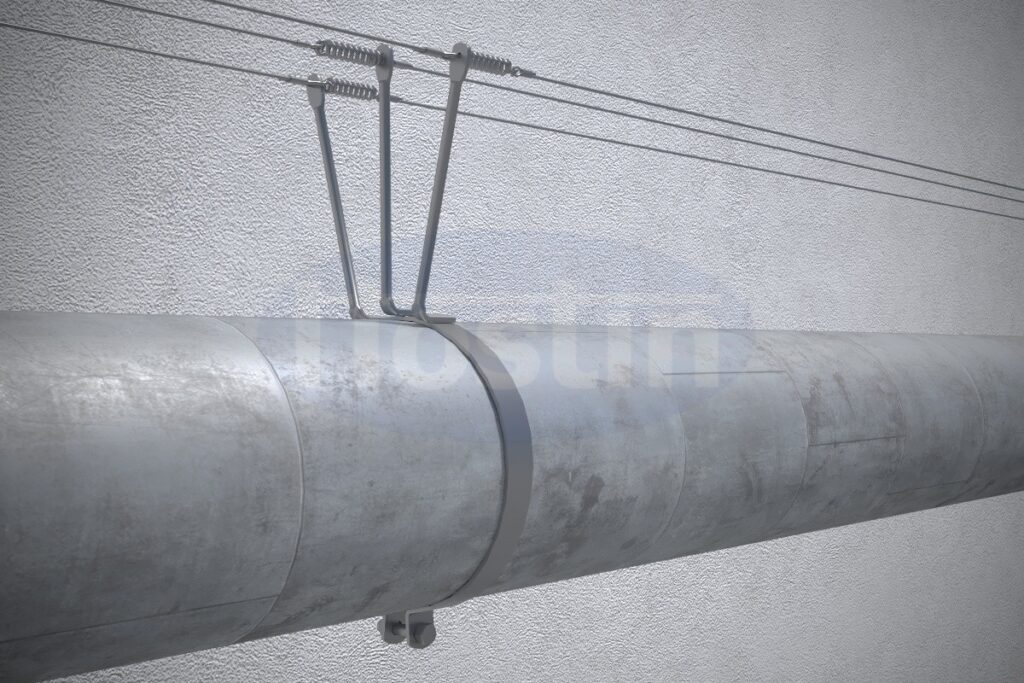

The 3-row bird wire barrier for gutters is designed to effectively protect pipes, gutters, and pipelines from bird contamination. The system consists of three wires stretched between individual carrier posts with guiding rods. Available in various sizes to fit pipe diameters ranging from 25 mm to 80 mm, this barrier offers flexible protection for different gutter types.
Installation:

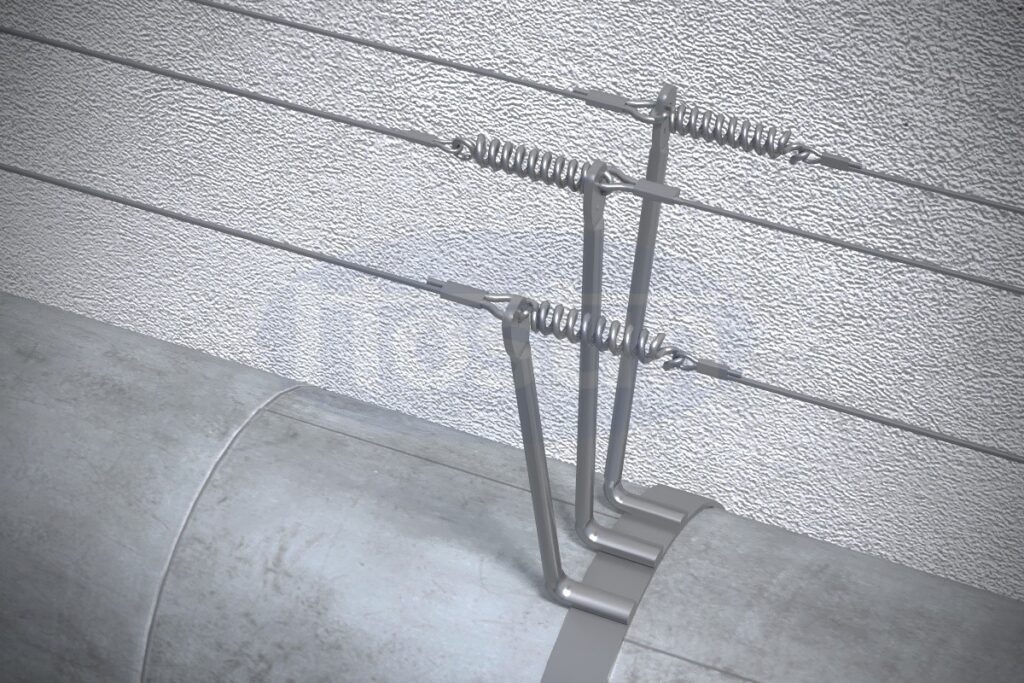

To install the barrier, place the carrier posts 1.5 meters apart, then stretch steel wires between them. Springs are added at the ends of the cables to ensure proper tensioning. The carrier posts are securely attached around the pipe by connecting the protrusions at the ends of the carrier belt with screws and nuts.

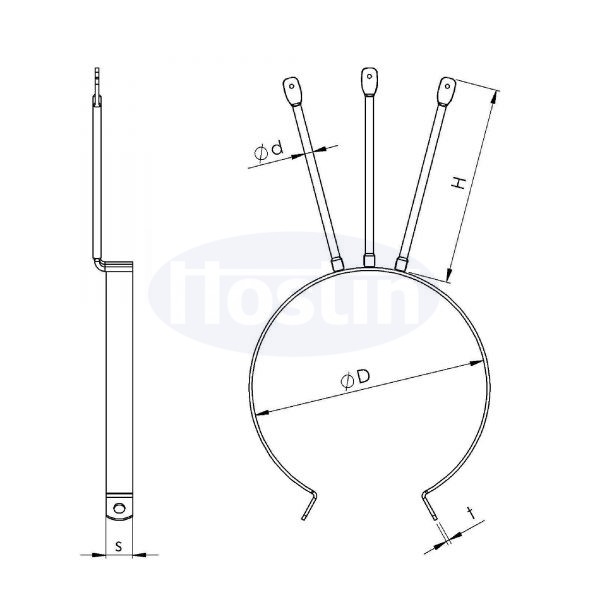

| For gutter diameter (D) | 100-110mm, 110mm, 159mm, 200mm |
|---|---|
| Rod diameter (d) | 4.0mm |
| Rod height (H) | 98mm |
| Carrier belt length (P) | 340mm, 362mm, 525mm, 653mm |
| Carrier belt thickness (t) | 1.5mm |
| Carrier belt width (s) | 13mm |
| Material | Stainless steel 1.4301 |
| Attachment | By screwing / gluing / riveting |
